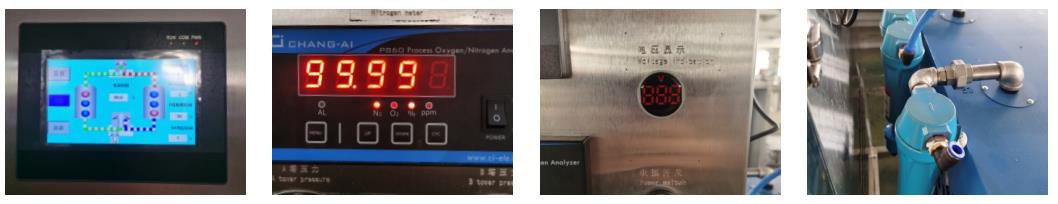

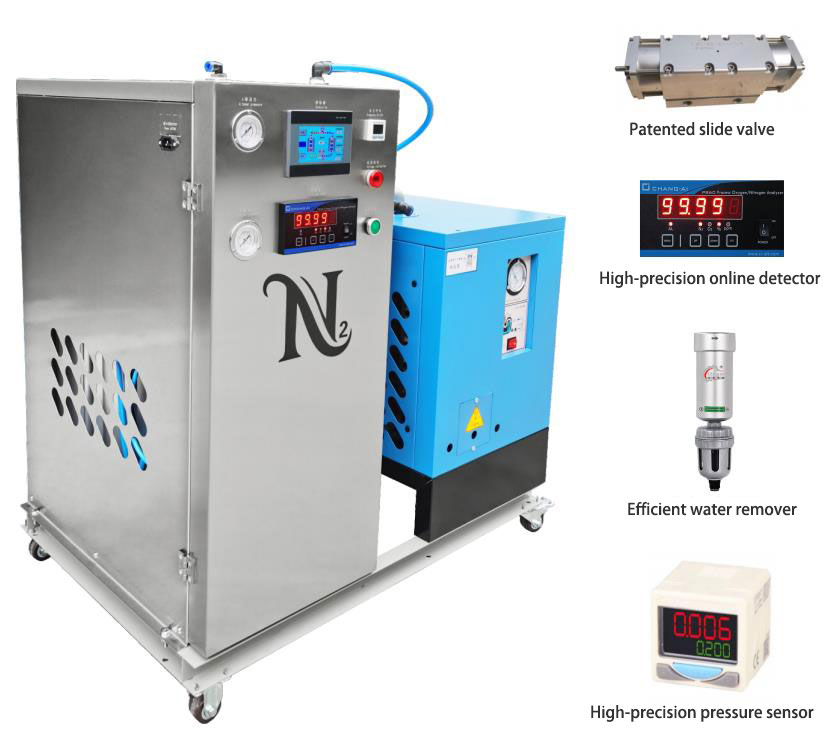

This model of nitrogen generator has a purity of 99.99%,equipped with a side-mounted cold dryer three-stage filter,making a dedicated nitrogen machine for industries such as laser welding/laser cutting/3D coating/3D printing,etc.It uses a high-precision nitrogen analyzer with alarm and automatic shutdown function.By deeply dehumidifying the air,the cold dryer heatless regenerative dryer can achieve a dew point of about-50'C at pressure and a dew point of about-30'C at pressure.
| Model | 1.5EBD | 2EBD | 3EBD | 5EBD |
|---|---|---|---|---|
| Nitrogen output | 1.5Nm³/h | 2Nm³/h | 3Nm³/h | 5Nm³/h |
| Nitrogen purity | 99.99% | 99.99% | 99. 99% | 99. 99% |
| Feedpressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogenpressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -30C° | -30C° | -30C° | -30C° |
| Totalweight | 125kg | 148kg | 166kg | 180kg |
| Dimensions | 820×680×1300mm | 980×680×1060mm | 980×680×1270mm | 980×680×1630mm |
| Case material | SUS 201 | SUS 201 | SUS 201 | SUS 201 |
