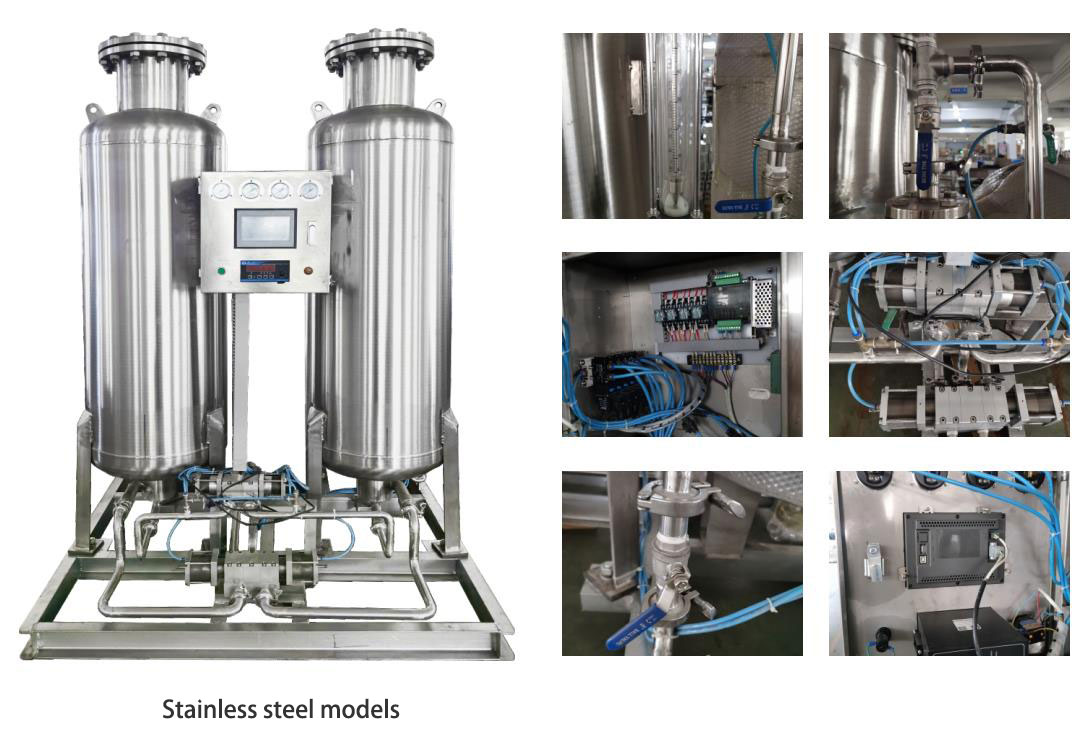

This model has a nitrogen purity of 99.999%,a large double-tower nitrogen generator,using the company's patented valves, -in refrigeration dryer and three-stage filter.It is equipped with a high-precision nitrogen analyzer with alarm function and auto-matic shutdown function.。
| Model | 20ED | 50ED | 80ED | 100ED | 150ED |
|---|---|---|---|---|---|
| Nitrogen output | 20Nm³/h | 50Nm³/h | 80Nm³/h | 100Nm³/h | 150Nm³/h |
| Nitrogen purity | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% |
| Feed pressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogen pressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -10C° | -10C° | -10C° | -10C° | -10C° |
| Total weight | 650kg | 1000kg | 1350kg | 1600kg | 2500kg |
| Dimensions | 2200×1300×1600mm | 2800×1700×1900mm | 3100×2000×2100mm | 3200×2100×2300mm | 3300×2200×2800mm |
| Case material | SUS 201 | SUS 201 | SUS 201 | SUS 201 | SUS 201 |
