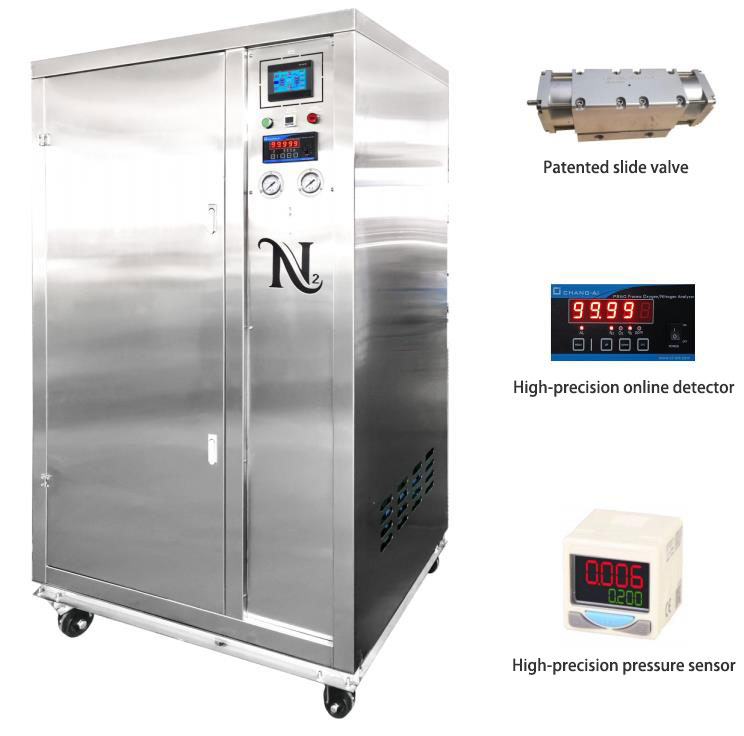

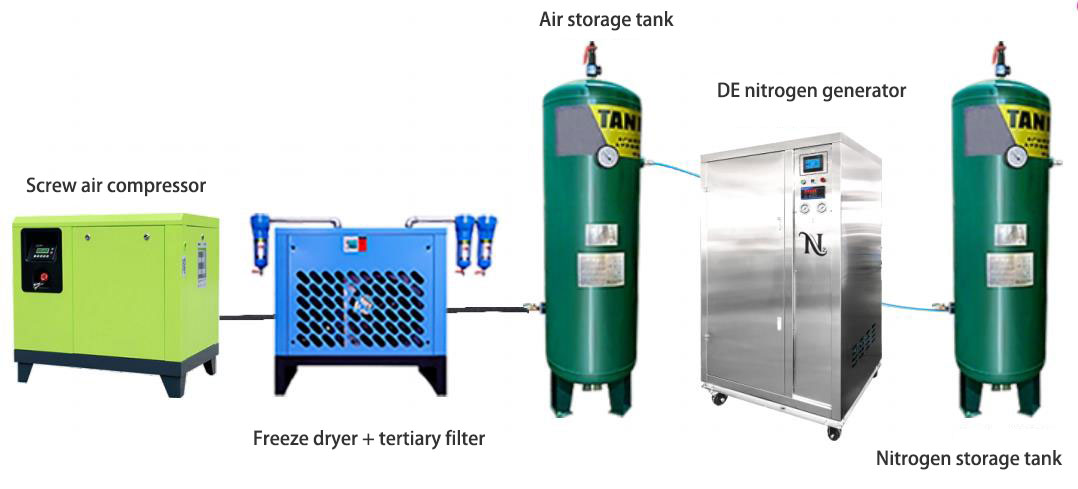

This model has a nitrogen purity of 99.99%,built-in freeze dryer three-stage filter,and occupies a smaller area.uses a high-precision nitrogen analyzer with alarm function and automatic shutdown function.
| Model | 3DE | 5DE | 8DE | 10DE | 12DE |
|---|---|---|---|---|---|
| Nitrogen output | 3Nm³/h | 5Nm³/h | 8Nm³/h | 10Nm³/h | 12Nm³/h |
| Nitrogen purity | 99.99% | 99.99% | 99.99% | 99. 99% | 99.99% |
| Feed pressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.8Mpa |
| Nitrogen pressure | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa | 0-0.65Mpa |
| Dew point | -30C° | -30C° | -30C° | -30C° | -30C° |
| Total weight | 45kg | 80kg | 110kg | 205kg | 205kg |
| Dimensions | 840×750×1300mm | 840×750×1300mm | 1080×750×1500mm | 1280×850×1500mm | 1280×850×1650mm |
| Case material | SUS 201 | SUS 201 | SUS 201 | SUS 201 | SUS 201 |
